IdeaFormer IR3 V2 Limited Refurbished，Infinite Z-Axis Steel Conveyor Belt 3D Printer，Shipping to US Addresses only

$599.00

Engineered for creators – discover the features below and claim your deal.

  • FEATURE

  • WHAT’S INCLUDE

  • SPECS

  • Long Model Printing.

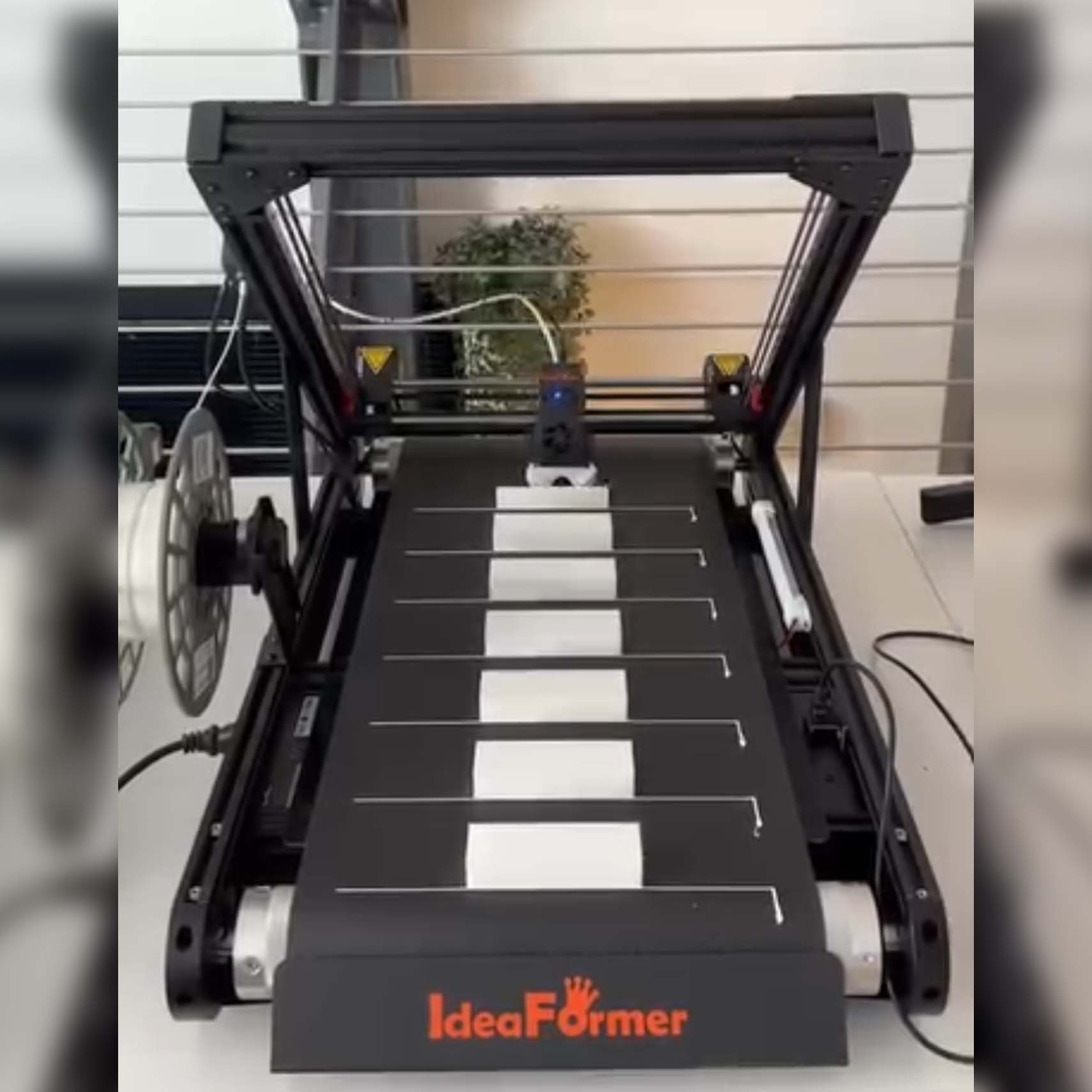

  • Batch Printing
  • Overhang Printing Without Support
  • Auto Leveling.
  • Upgrade Metal Belt.
  • High-Speed Printing with Klipper.
  • Remote Monitoring & Control
  • Filament Run-Out Detection
  • 4.3lnch Touch Screen + LED Light
  • Open Source Klipper
  • 250x250x∞mm Printing Size
  • 400mm/s Printing Speed

IR3 V2 3D printer, 286g Free Filament, USB flash drive, Toolbox, Micro SD, Camera, Quick Start Guide

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Product Detail

100% Auto Leveling

100% auto leveling by machine after assembled. Print head with senser , it will detect the distance with the bed platfrom , and matched with the slice setting Y offset -0.1 to -0.2mm（depand on the filament Stickiness ), then it will stick well on the belt .

PEI-Coated Metal Conveyor Belt

Metal conveyor belt , mainly coated with PEI . Printing area is warm for sticker models on , and it is strong hardness, High models on it will not shaking. Detach model area is cold , it is easy to separate the model from the conveyor belt .

Lightning Fast with Klipper

Klipper firmware/Fast printing . Pring speed is over 400 + mm/s , Powered by the Open-source Klipper system klipper firmware and designed the xy axis move very smooth, z axis is powerful with gearbox and we put it inside the roller.

Stable ABS/Nylon Printing

Enclosure box . for print high temperature filament , such as abs nylon etc.  keep the model not warp up and crack

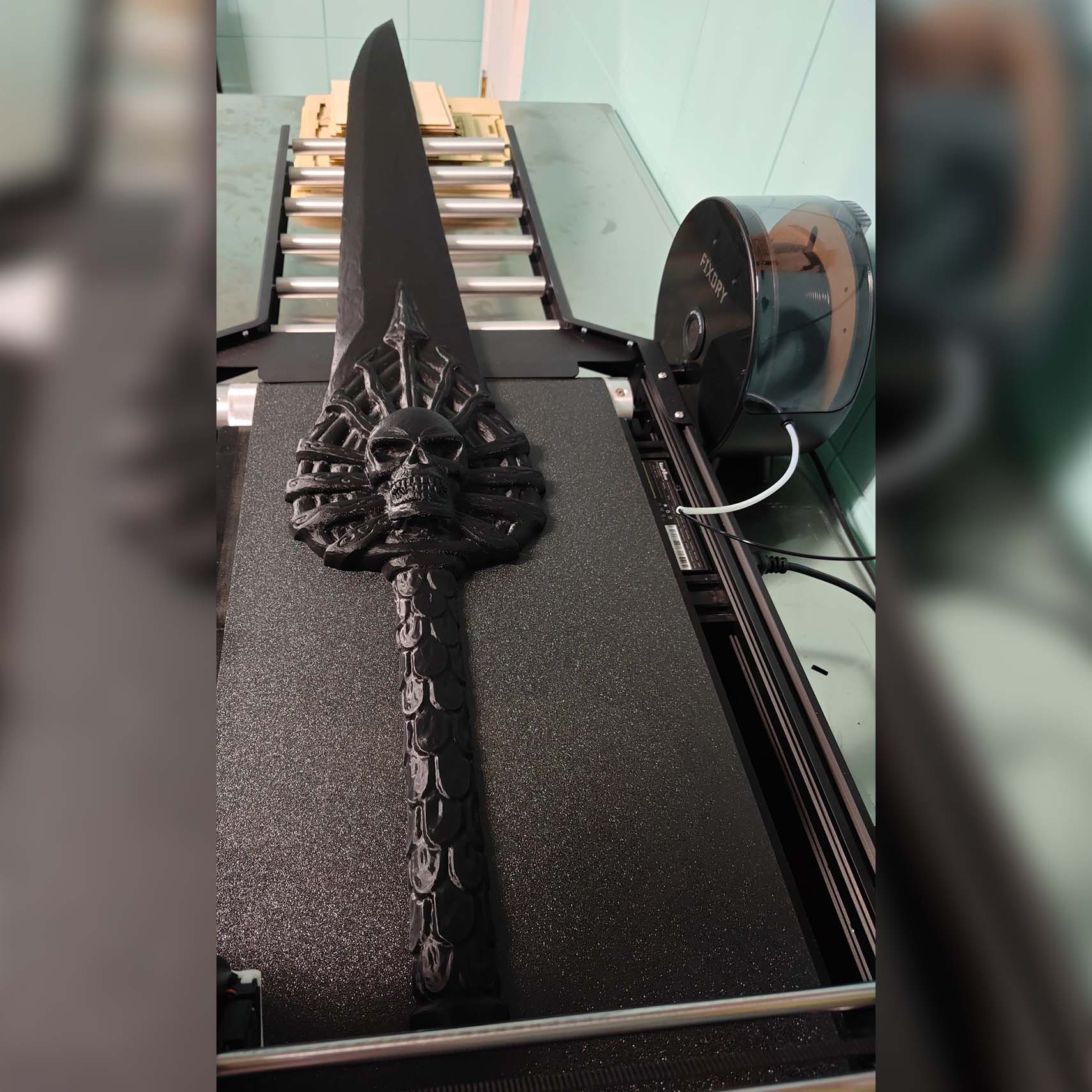

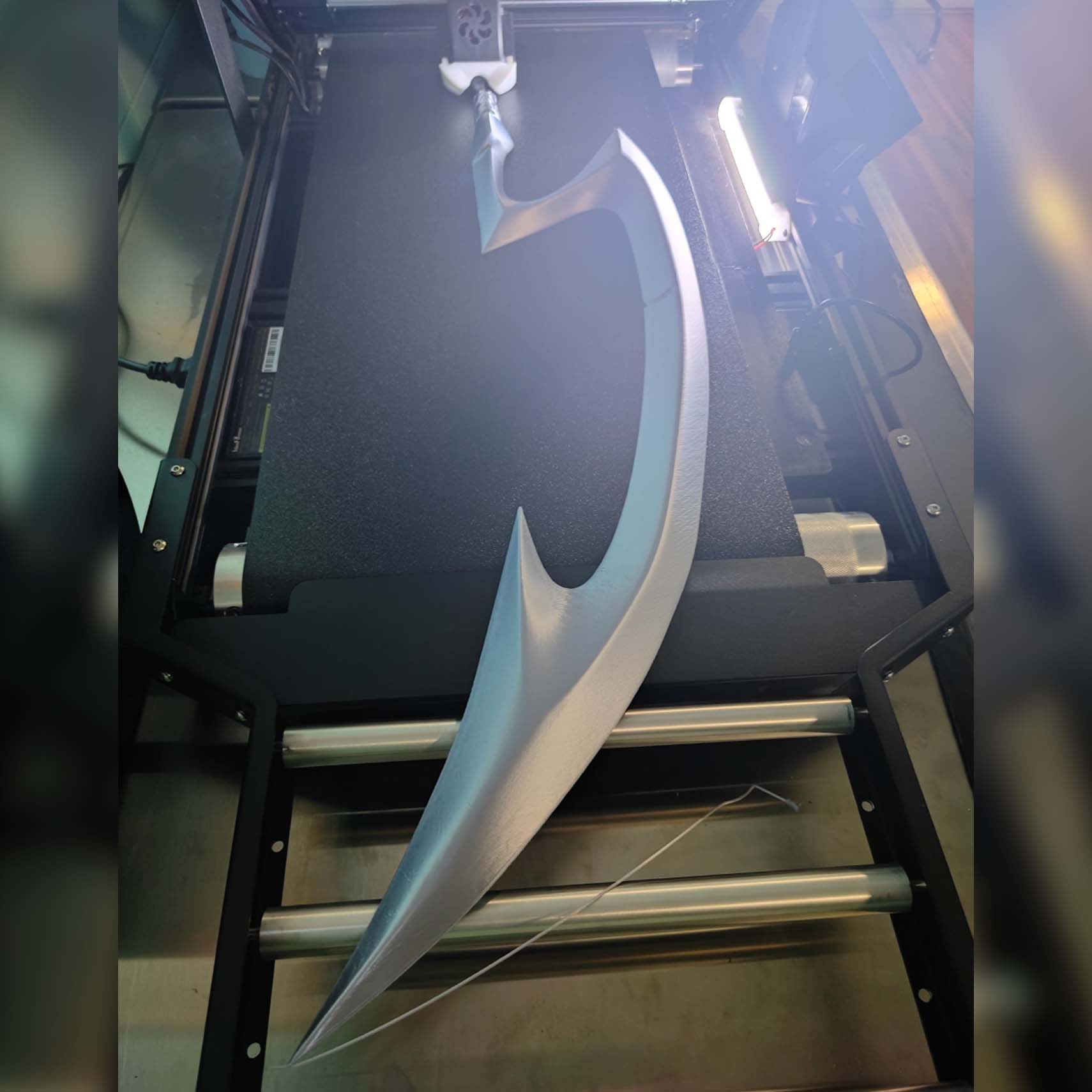

Stays Flat, Prints Long

Extend roll . for print long model, keep the print side sticker well , and keep the model not bent.

Smart Printing

Wifi and Camera . It can be remote control by phone or computer, if filament enough , you can keep it working for long time even you are not behind the printer.

Always in Control, Day or Night

4.3-inch capacitive touch screen and Led light , you can check the status at mid night

No Filament? No Problem

Easy assembly and Stable printing . base on auto leveling , it sticker very well, metal belt keep models no shaking , all main electronic parts design by ourself, and we use the good components on heater , thermistor ,fans , power supplier etc . After 6 month testing and adjustment, printing is quite stable now. (print a great model need with a correct slice setting)

Assembles Fast, Prints Steady

Easy assembly and Stable printing . base on auto leveling , it sticker very well, metal belt keep models no shaking , all main electronic parts design by ourself, and we use the good components on heater , thermistor ,fans , power supplier etc . After 6 month testing and adjustment, printing is quite stable now. (print a great model need with a correct slice setting).

IR3 V2 3D Prnter Specifications

  • Machine Parameters

  • Sensors

  • Software

  • Electrical Hardware

Printing Technology

FDM

Layer Thickness

0.1-0.3mm

Machine Structure

Full metal frame

Print Speed

≤400mm/s

Motion Structure

CoreXY

Print Acceleration

≤20000mm/s²

Filament Diameter

1.75mm

Maximum Nozzle Temperature

300°C

Motor Type

5:1 Dual gear reduction extruder motor

Maximum Heated  Bed Temperature

90°C

Nozzle Material

Hardened steel

Nozzle Heating Time

40s

Nozzle Size

Standard 0.4mm

Heated Bed Heating Time

90s

Print Volume

250×250×∞mm(X*Y*Z)

Maximum Flow Rate

26mm³/s

Product Dimensions

676×436×510mm

Print Platform

PEI metal build surface

Package Dimensions

770×510×320mm

Compatible Materials

PLA/PETG/TPU/ ABS/ASA, etc.

Net Weight

16.5kg

Operating Environment  Temperature

10-40°C

Gross Weight

21kg

Noise Level

54dB

Print Precision

±0.1mm

Print Methods

USB drive/Local network/Internet network

Printing Vibration Compensation

Yes

Filament Runout Detection

Yes

Material Shortage Detection

Yes

Clogging Detection

Yes

Auto Leveling

Yes

LED Lighting

Yes

Camera

Yes

Slicing Software

Ideamaker/ Ideaformer Cura

Operating Systems

Windows/MacOS/Linux

Output File Format

.gcode

input Formats

.stl/.obj/.3mf/.step/ .stp/.iges/.igs/.oltp/ .jpg/.jpeg/.png/.bmp

Input Voltage

110VAC/220VAC, 50/60Hz

Memory

16GB-SD, 1GB DDR3

aximum Power

800W

User Interface

4.3-inch touchscreen with 800×480 resolution

Main Controller

64-bit 1.5GHz Quad-core Cortex-A53 processor

Printing Firmware Klipper

Klipper
